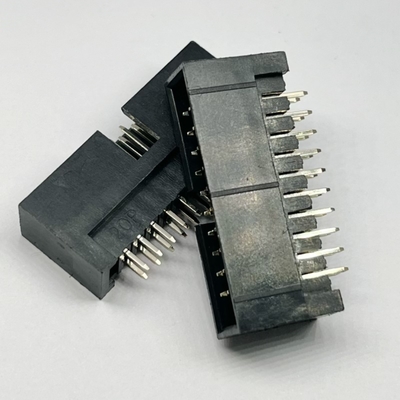

Name: 2.54mm Box Header Connector 6 8 10 20 30 40 64 Pin Straight Dip Type DC3
Brand: Dongguan Honshi Electronics Co., Ltd.
SKU: 4813-136xxsxxxx01
Price: 0.01 USD
Availability: InStock

Inicio Productos Conector del jefe de la caja

2.54mm Box Header Connector 6 8 10 20 30 40 64 Pin Straight Dip Type DC3

Datos del producto:

Lugar de origen:	Guangdong, China
Nombre de la marca:	HONSHI
Certificación:	ROHS/SGS/UL
Número de modelo:	4813-136xxsxxxx01

Pago y Envío Términos:

Cantidad de orden mínima:	100 piezas
Precio:	0.01-0.3 usd
Detalles de empaquetado:	Bandeja/tubo
Tiempo de entrega:	10 a 15 días
Condiciones de pago:	T/t, PayPal
Capacidad de la fuente:	100000pcs

Contacto

Descripción detallada del producto

Tipo:	ESTRUENDO	Aplicación:	Tarjeta de circuito impreso
Género:	Masculino	Nombre del producto:	Conector del jefe de la caja
Material de contacto:	Latón	Corriente nominal:	3Amp
Resistencia de contacto:	20 mΩ	Chapado:	El oro palted ((1U") ((puede ser personalizado)
Embalaje:	Cuadro de las condiciones de producción	Muestra:	Muestras de apoyo
Calificación de voltaje:	40 V CA	Voltaje de soporte:	1000V AC/minute
Paso:	2.54 mm

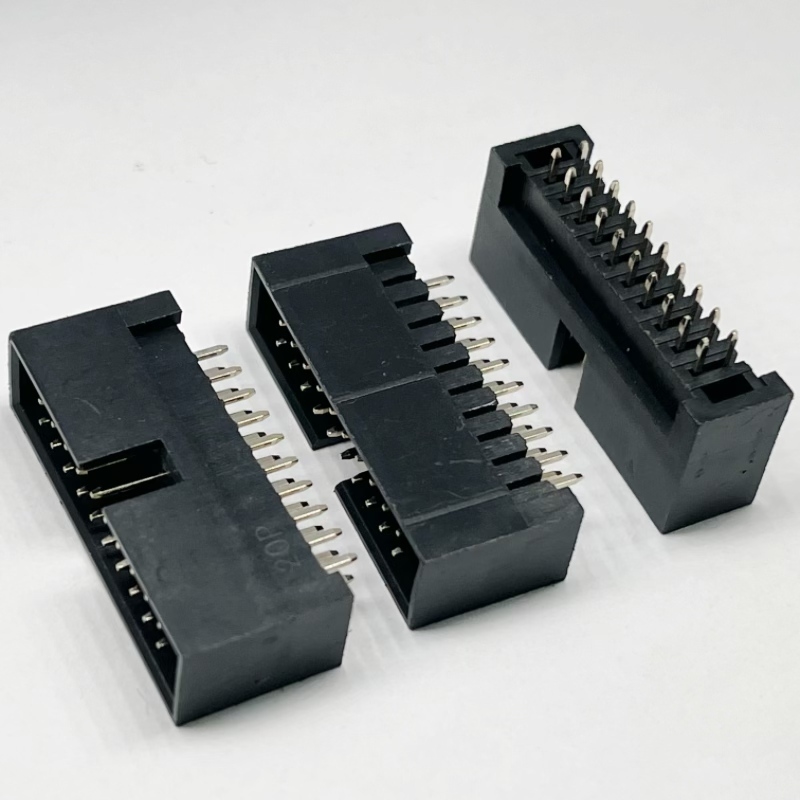

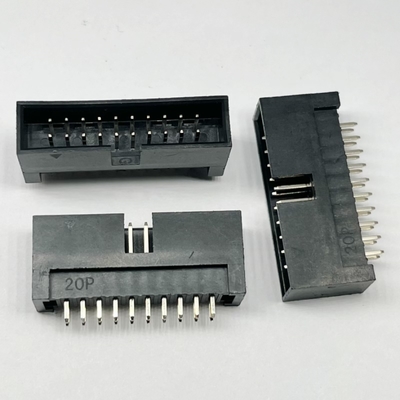

2.54mm Box Header Connector 20 pin Straight DIP DC3 Headers 2x10p Sample Supported

Product Name	Box Header Connector
Pitch	1.27/1.27X2.54/2.0/2.54mm
Positions	6P-100P
Current Rating	1A/2A/3A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PA6T/PA9T ( UL94V-0 )

Product name: Box Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA6T/PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
